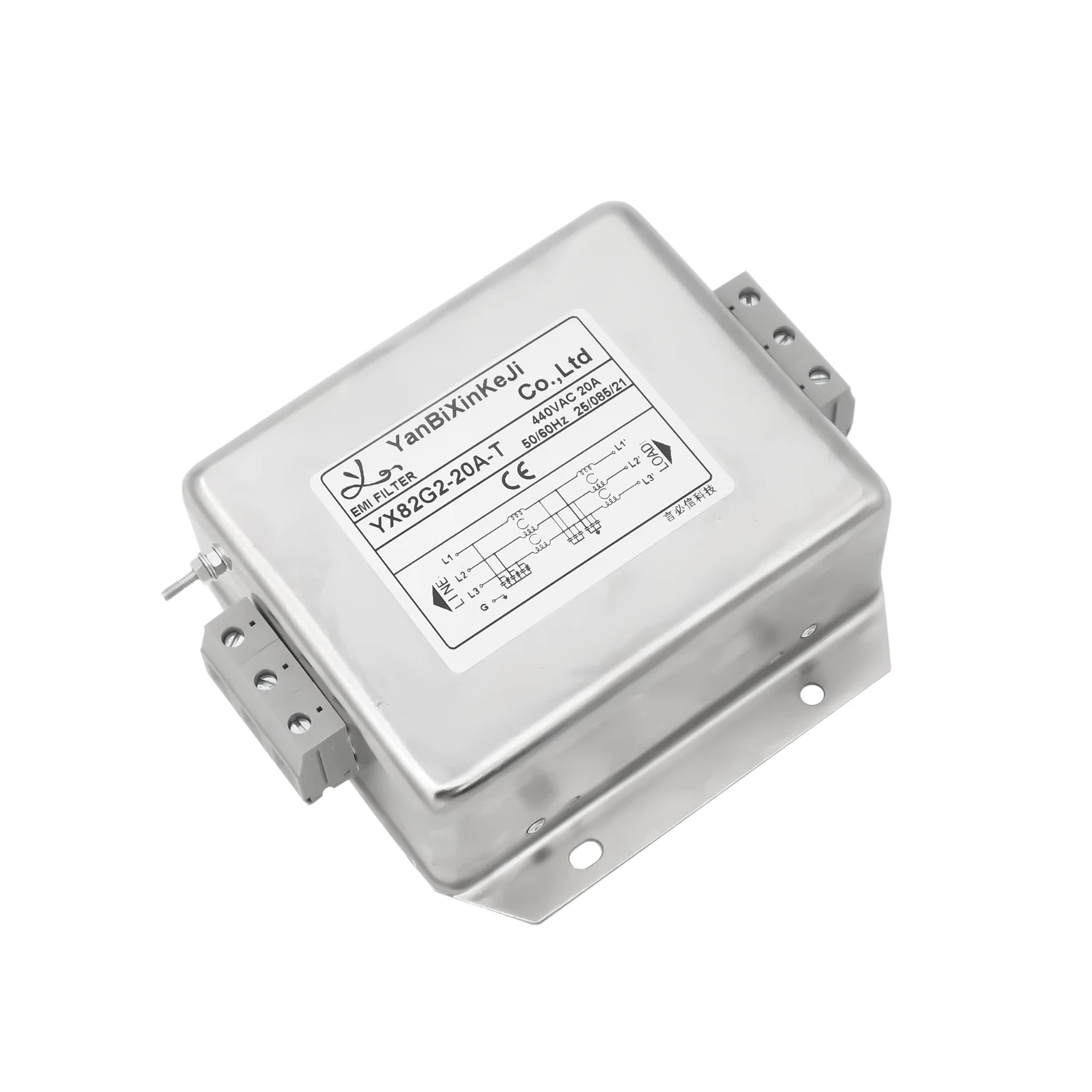

High Attenuation Type Three Phase Filter Terminal Block EMI Filter For Converter

Brand Name : YBX

Model Number : YX82G1-6A-Q

Certification : cUL, TUV, CQC, CE, ROHS

Place of Origin : China

MOQ : 1pcs

Price : Negotiable

Payment Terms : L/C, T/T

Supply Ability : 500000 Piece/Pieces per Month

Delivery Time : 15-25 days

Packaging Details : 56.5*28.5*22.5cm(one box)

Product : 6A Three Phase Filter

Voltage : 380V/440V

Current : 6A~100A

Environmental Temperature : 50°C

Line to Line : 1800VDC

Line to Ground : 2250VDC

Contact Now

High Attenuation Type Three Phase Filter Terminal Block EMI Filter For Converter

Product Paramenters

Product name	Terminal Block Three Phase Filter
Model	YX82G2-20A-T
Transfer Function	Low Pass
Package Type	Surface Mount
Nominal Center Frequency	10K-30MHZ
Insertion Loss	60~90dB
Input Impedance	50Ω
Rated Voltage	250V/440V
Rated Current	1A-100A
Environmental Temperature	40°C
Temperature Range	25 / 085 / 21
Operating Frequency	50/60HZ
Line to Line	1450VDC
Line to Ground	2250VDC
Maximum Leakage Current	250VAC/60HZ 0.45mA Max. 440VAC/60HZ 0.9mA Max
MOQ	5pcs

Rule of Nomination:
YX	82	G2	—	20A	—	T
\|	\|	\|		\|		\|
Three Phase	Circuit	Dimension		3A :3 amps		Output connection
	82:82 circuit	G2		6A :6 amps		S: M4/M6/M8 Screw
				10A :10 amps		T: Terminal Block
						B: Copper Bar

EMI Filter Selection Table:

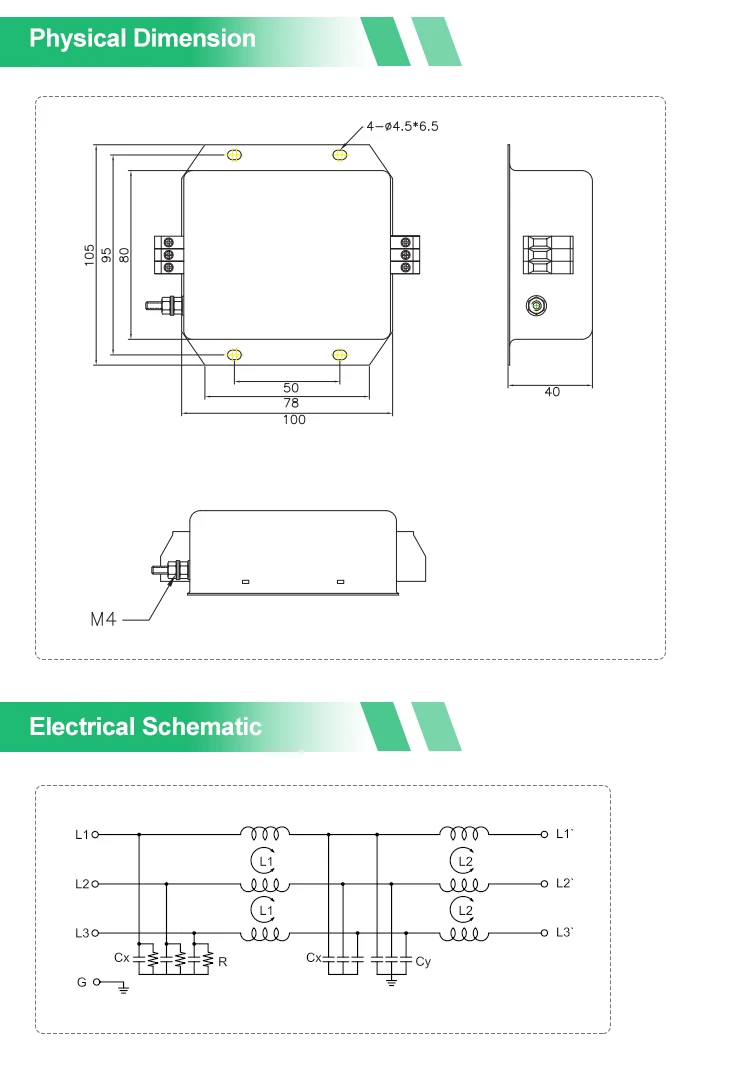

Model No.	Rated Current @40°C	Terminal Options*			Bleeder resistor (optional)	Leakage current 250V/50Hz	Electrical Schematic	Rated Voltage (V)	Operating Frequency(Hz)
		Terminal Options*

YX82G1-1A	1A	Q	S	T	-	<1.0mA	Fig.1	250/440V	50/60Hz
YX82G1-3A	3A	Q	S	T			Fig.1
YX82G1-6A	6A	Q	S	T			Fig.1
YX82G2-10A	10A	Q	S	T			Fig.1
YX82G2-15A	15A	Q	S	T			Fig.1
YX82G2-20A	20A	-	S	T			Fig.1
YX82G3-10A	10A	-	S	T	-	<2.0mA	Fig.1
YX82G3-20A	20A	-	S	T	-	<2.0mA	Fig.1
YX82G3-30A	30A	-	S	T	-	<5.0mA	Fig.1
YX82G5-30A	30A	-	S	T			Fig.1
YX82G5-50A	50A	-	S	T			Fig.1
YX82G5-60A	60A	-	S	T	-	<7.0mA	Fig.1
YX82G4-100A	100A	-	S	T			Fig.1
YX82G4-150A	150A	-	S	T			Fig.1
YX82G6-200A	200A	-	S	T	-	<10.0mA	Fig.1
